Drag & drop

Calendar events can be created, moved and resized on the Eventcalendar. Furthermore it is possible to drag and drop events from an external source or to drag and drop to an external target from the Eventcalendar. The following sections describe how these solutions can be implemented and used.

Internal drag/resize/create​

The events on the Eventcalendar can be moved and resized with mouse/touch interactions. The dragToMove and dragToResize options enable the events drag and drop and resize functionality. With the dragTimeStep option the minimum amount of drag/resize step can be specified in minutes.

With the dragToCreate option enabled, events can be created by dragging on the empty areas of the Eventcalendar. On a desktop environment a new event can also be created with the clickToCreate option.

To customize the newly created event use the extendDefaultEvent option.

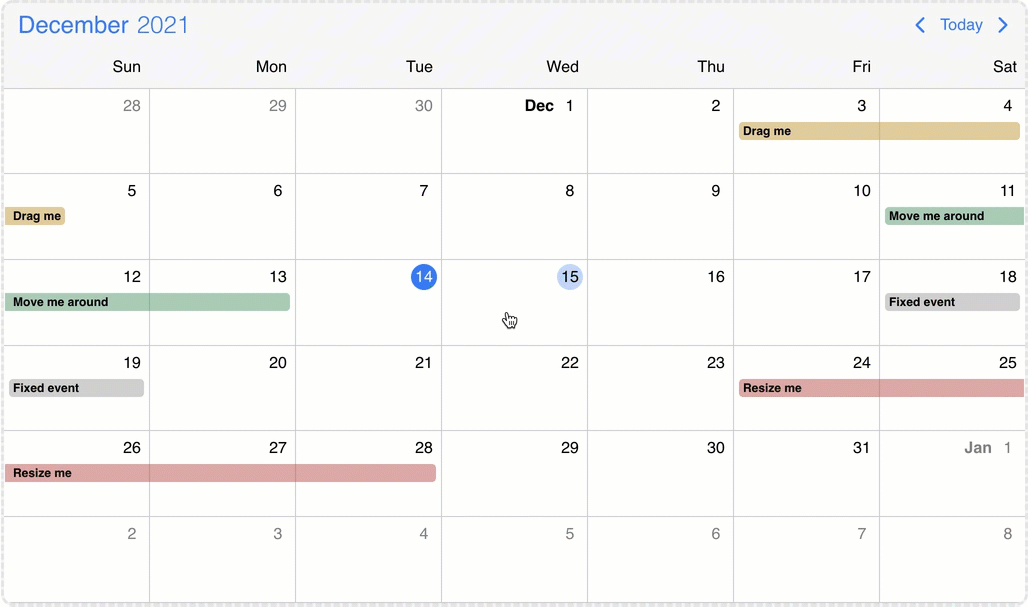

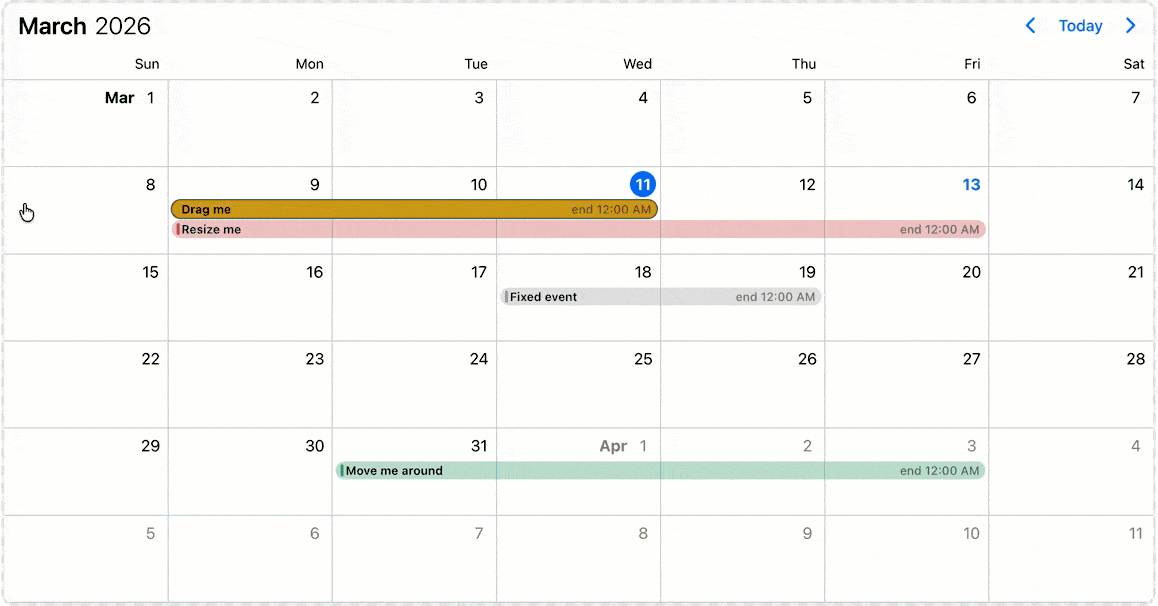

Eventcalendar move/resize/create

Targeting the Eventcalendar​

There is a possibility to drag & drop any external element into your calendar.

In order to achieve this, first you need to grant permission to your calendar to accept this behavior. You can do that by setting the externalDrop option to true.

As a second step, you'll have to create your external draggable element and pass a skeleton event definition through the dragData option which will be added to the Eventcalendar on drop. If omitted, a default event will be created.

Draggable​

You can initialize the draggable containers by using the mbsc-draggable directive on the element.

<div mbsc-draggable [dragData]="myEvent">
  <div>My Draggable event</div>
</div>

<mbsc-eventcalendar [externalDrop]="true"></mbsc-eventcalendar>
import { MbscCalendarEvent } from '@mobiscroll/angular';

@Component({...})
export class MyComponent {
  myEvent: MbscCalendarEvent = {
    title: "My new 3h long event",
    start: new Date(2023, 10, 10, 12),
    end: new Date(2023, 10, 10, 15),
    color: "green",
  };
}

Draggable options​

context​

string | HTMLElement

Specify where the dragged element will be appended in the DOM.

dragData​

string | MbscCalendarEvent | MbscResource

The data of the dragged element.

The MbscCalendarEvent type has the following properties:

  • allDay: boolean - Specifies if the event is all day or not.
  • bufferAfter: number - Defines a buffer time in minutes that will be displayed after the end of the event.
  • bufferBefore: number - Defines a buffer time in minutes that will be displayed before the start of the event.
  • cellCssClass: string - CSS class for the day cell. Only applicable for the calendar view.
  • color: string - Background color of the event
  • cssClass: string - Specifies a custom CSS class that is applied to the event. Useful when customization is needed on the event level. For example: setting the width for specific events.
  • date: string | object | Date - Specifies a single date for the event
  • dragBetweenResources: boolean - Specifies whether the event is movable across resources.
  • dragBetweenSlots: boolean - Specifies whether the event is movable across across slots.
  • dragInTime: boolean - Specifies whether the event is movable in time.
  • editable: boolean - Specifies if an event is editable or not. If false, drag & drop and resize is not allowed.
  • end: string | object | Date - Specifies the end date/time of a date/time range for the event
  • id: string | number - A unique id for the event. If not specified, the event will get a generated id.
  • order: number - Specifies the order of the event in the array. Has precedence over the default ordering rules.
  • overlap: boolean - Specifies whether the event can be overlapped. Has precedence over the eventOverlap property of the resource and the eventOverlap option.
  • recurring: string | MbscRecurrenceRule - Specifies a recurrence rule for handling recurring events.
  • recurringException: string | object | Date | Array<string | object | Date> - Exception dates of the recurring rule. Useful when specific dates need to be skipped from the rule.
  • recurringExceptionRule: string | MbscRecurrenceRule - Exception rule of the recurring rule. Useful when recurring dates need to be skipped from the rule.
  • resize: boolean - Specifies whether the event is resizable. Has precedence over the eventResize property of the resource and the dragToResize option.
  • resource: string | number | Array<string | number> - In case of the timeline and scheduler view of the Eventcalendar, specifies the resource ids for the event. The event will be displayed only on the specified resource. If there is no resource defined, it will be displayed on every resource.
  • slot: string | number - In case of the timeline view of the Eventcalendar, specifies the slot id for the event. The event will be displayed only on the specified slot. If there is no slot defined, it will be displayed on every slot.
  • start: string | object | Date - Specifies the start date/time of a date/time range for the event
  • textColor: string - A color applied on the text.
  • timezone: string - Timezone of the event
  • title: string - The title of the event.
  • tooltip: string - The tooltip text of the event.

The MbscResource type has the following properties:

  • background: string - Specifies the background color of the resource row or column.
  • children: Array<MbscResource> - Child resources.
  • collapsed: boolean - Specifies the displayed state of the child resource group.
  • color: string - Specifies the default event color of the resource. If an event has an explicit color set, the resource color will be overridden. If the color is not set, the events of the resource will inherit the default calendar color.
  • cssClass: string - Specifies a css class for the resource row or column.
  • eventCreation: boolean - Disables event creation on specific resources by setting it to false. Defaults to true.
  • eventDragBetweenResources: boolean - Specifies whether the events in this resource are movable across resources. It applies for scheduler and timeline views. Has precedence over the dragBetweenResources option.
  • eventDragBetweenSlots: boolean - Specifies whether the events in this slot are movable across slots. Has precedence over the dragBetweenSlots option.
  • eventDragInTime: boolean - Specifies whether the events in this resource are movable in time. Has precedence over the dragInTime option.
  • eventOverlap: boolean - Specifies whether the events in this resource can be overlapped. Has precedence over the eventOverlap option.
  • eventResize: boolean - Specifies whether the events in this resource are resizable. Has precedence over the dragToResize option.
  • fixed: boolean - Specifies whether the resource is fixed to the top. It applies for timeline view if resolutionVertical in view option is not given, or it's value is set to none. Consider that the fixed resources always have to be the first elements of the array in a sequence (no non-fixed resources inserted in between) so that the dra & rop and event creation functionalities to work properly.
  • id: string | number - The id of the resource.
  • name: string - Specifies the name of the resource.
  • reorder: boolean - Specifies whether the resource can be dragged and reordered. It applies for timeline view if resourceReorder in view option is enabled.

element​

HTMLElement

The HTML element of the dragged item.

type​

"event" | "resource"

Specify the type of the draggable element

The Eventcalendar as source​

The externalDrag option enables events to be dragged out from the calendar/schedule/timeline views and dropped on another instance of the Eventcalendar or any Dropcontainer.

When an event leaves the Eventcalendar the onEventDragLeave life-cycle event will be fired and a clone of the calendar event will be displayed for a better illustration of the movement. If the dragToMove option is not enabled the dragged event will instantly leave the calendar container and the onEventDragLeave event will fire and the event clone will be displayed. When an event enters the Eventcalendar the onEventDragEnter life-cycle event will be fired.

Dropcontainer​

The Dropcontainer defines a container where events can be dragged from or dropped to. The onItemDragLeave and onItemDragEnter life-cycle events can be used to track when an event exits or enters the Dropcontainer. When an item is dropped inside the container the onItemDrop event is triggered. This can be useful for unscheduling work or appointments that were already scheduled.

<mbsc-dropcontainer (onItemDrop)="unscheduleEvent($event)">
  <div>My Unscheduled events:</div>
  <ul>
    <li *ngFor="let event of myUnscheduledEvents" mbsc-draggable [dragData]="event">
      <div>{{event.title}}</div>
    </li>
  </ul>
</mbsc-dropcontainer>

<mbsc-eventcalendar [externalDrop]="true" [externalDrag]="true" [dragToCreate]="true" [dragToMove]="true"
  (onEventCreate)="scheduleEvent($event)"></mbsc-eventcalendar>
import { MbscCalendarEvent, MbscEventCreateEvent, MbscItemDragEvent } from '@mobiscroll/angular';

@Component({...})
export class MyComponent {
  myUnscheduledEvents: MbscCalendarEvent[] = [{
    id: 1,
    title: "My new 3h long event",
    start: new Date(2023, 10, 10, 12),
    end: new Date(2023, 10, 10, 15),
    color: "green",
  }];

  unscheduleEvent(dropEvent: MbscItemDragEvent) {
    this.myUnscheduledEvents = [...this.myUnscheduledEvents, dropEvent.data]
  }

  scheduleEvent(args: MbscEventCreateEvent) {
    this.myUnscheduledEvents = this.myUnscheduledEvents.filter(item => item.id !== args.event.id);
  }
}

Dropcontainer events​

onDestroy​

(args: any, inst: any) => void

Triggered when the component is destroyed.

Parameters:

  • args - The event argument object.

  • inst - The component instance.

onInit​

(args: any, inst: any) => void

Triggered when the component is initialized.

Parameters:

  • args - The event argument object.

  • inst - The component instance.

onItemDragEnter​

(args: MbscItemDragEvent) => void

Triggered when an event is dragged into the calendar/timeline/schedule view.

Parameters:

  • args - The event argument with the following properties:
    • domEvent: Event - The DOM event of the drag.
    • data: MbscCalendarEvent | MbscResource - The dragged data.
    • dataType: 'event' | 'resource' - The type of the dragged item.

onItemDragLeave​

(args: MbscItemDragEvent) => void

Triggered when an event is dragged into the calendar/timeline/schedule view.

Parameters:

  • args - The event argument with the following properties:
    • domEvent: Event - The DOM event of the drag.
    • data: MbscCalendarEvent | MbscResource - The dragged data.
    • dataType: 'event' | 'resource' - The type of the dragged item.

onItemDrop​

(args: MbscItemDragEvent) => void

Triggered when an event is dropped inside the drop container.

Parameters:

  • args - The event argument with the following properties:
    • domEvent: Event - The DOM event of the drag.
    • data: MbscCalendarEvent | MbscResource - The dragged data.
    • dataType: 'event' | 'resource' - The type of the dragged item.
