Timeline

The timeline view displays a timeline with its related events. It can be configured as a daily, weekly, monthly or yearly timeline. Work hours and work days along with disabled time-spans, breaks can be added. Use it to for advanced scheduling tasks with built-in drag & drop.

The displayed week days can be modified with the startDay and endDay properties of the view option.

The displayed hours can be modified with the startTime and endTime properties of the view option. With these properties both hours and minutes can be specified.

Desktop monthly timeline

Resource grouping and hierarchy​

The timeline view supports resource hierarchy. Hierarchy groups can be defined with the children property of the resource object. Child objects are also resources and have the same properties, thus they can also have children.

Multi-level hierarchy groups
resources: [{
  name: 'Site 1',
  children: [{
    name: 'Building 1'
    children: [{
      name: 'Room 1'
    }, {
      name: 'Room 2'
    }]
  }, {
      name: 'Building 2'
  }]
}, {
  name: 'Site 2',
  children: [{
    name: 'Building A'
  }]
}]

By default every resource group will be displayed and this can be modified with the collapsed attribute of the parent objects.

Collapsed groups
resources: [{
  name: 'Main Building',
  id: 'main',
  description: 'Used the most for scheduling'
  collapsed: true,
  children: [{
    name: 'Big conf. room'
    id: 'bfg',
  }, {
    name: 'Smaller conf. room'
    id: 'sfg',
  }]
}, {
  name: 'Secondary Building',
  id: 'sec',
  description: 'For smaller, less important meetings'
  collapsed: false,
  children: [...]
}, {
  name: 'Long forgotten Cave',
  id: 'cave',
  description: 'Where developers used to work'
  collapsed: false,
}],

Both parent and child rows can contain events and events can be moved between any rows.

Resources & events
resources: [{
  name: 'Main Building',
  id: 'main',
  children: [{
    name: 'Big conf. room'
    id: 'bfg',
  }]
}, {
  name: 'Secondary Building',
  id: 'sec',
}],
data: [
  { title: 'Open day celebration', resource: 'main', date: '2023-08-24'},
  { title: 'Monthly staff meeting', resource: 'bfg', start: '2023-08-01T11:00', end: '2023-08-01T11:00' },
  { title: 'Weekly chit-chat', resource: 'sec', start: '2023-08-02T09:00', end: '2023-08-02T09:40' },
  ...
]

Child or parent rows can be disabled by creating an invalid rule which repeats daily and it is tied to the specific resources. Example:

Disable parent and/or child resources
invalid: [
  {
    recurring: { repeat: "daily" },
    resource: [
      /* resource id(s) */
    ],
  },
];

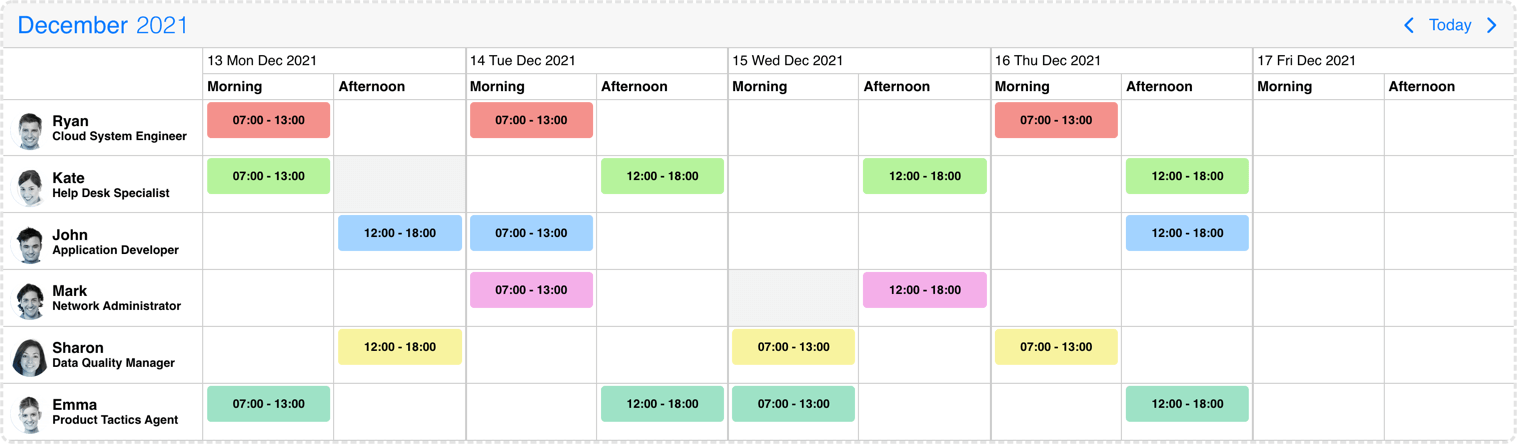

Event slots​

info

Not to be confused with named slots. In Vue terms slots are used for templating, but there is also a slots option for the Eventcalendar and this section is dedicated it.

Besides the resources which are grouping data for the whole date range, slots introduce a horizontal daily grouping in case of the timeline view. Slots can be used alongside resources.

When slots are used the timeline view will display in daily listing mode and only the dragToMove event iteraction will be available. The dragToCreate and dragToResize interactions will be truned off.

Slots used for work shift management
slots: [
  {
    id: 1,
    name: "Morning shift",
  },
  {
    id: 2,
    name: "Afternoon shift",
  },
];

Timeline slots

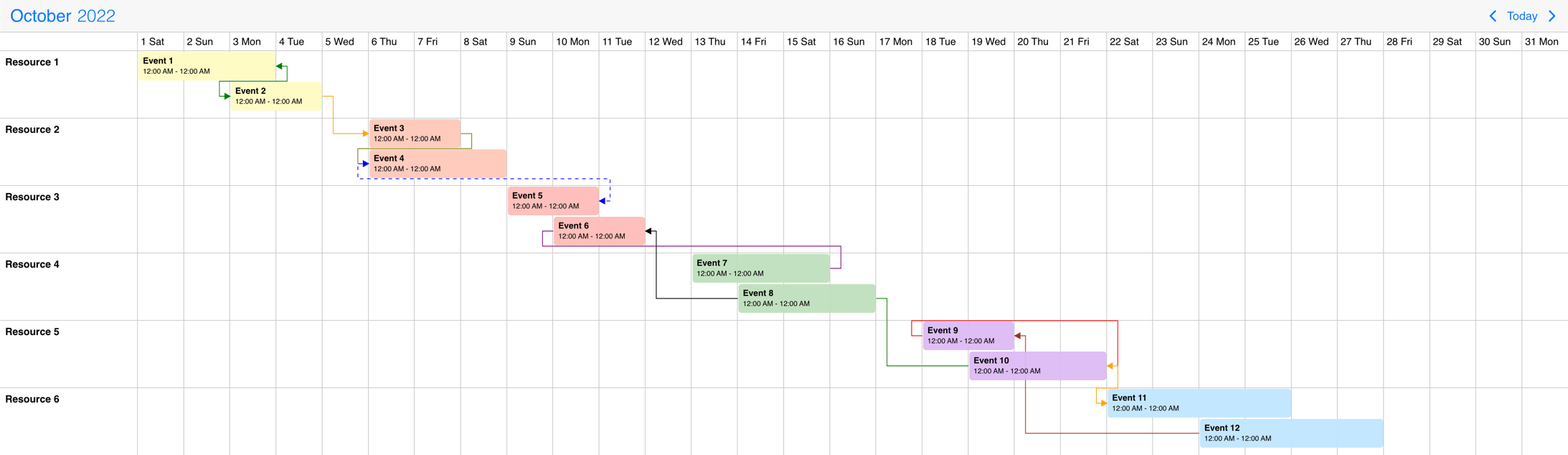

Event connections​

The timeline view can display connections between events. Events will be linked with lines and additionally arrows can be displayed to illustrate the direction of the connection. Events can have multiple connections simultaneously. Connections can be specified with the connections option.

Timeline event connections

Row height​

There are three CSS classes which can be used for changing the height of resource rows.

  1. For setting the resource row heights in general, you can use the .mbsc-timeline-row class.

    .mbsc-timeline-row {
      height: 80px;
    }

  2. For setting the height of the parent resources, you can use the .mbsc-timeline-parent class.

    .mbsc-timeline-parent {
      height: 30px;
    }
    info

    There's minimum height of the rows which can only be decreased if the event creation is disabled on the relevant resource. You can prevent event creation by using the eventCreation property of the the resources option.

  3. For customizing the remaining empty space below the events, you can use the .mbsc-timeline-row-gutter class.

    .mbsc-timeline-row-gutter {
      height: 6px;
    }

Column width​

The resource column width of the timeline view is fixed. It can be overwritten from CSS using the following rules:

Custom resource column width
.mbsc-timeline-resource-col {
  width: 200px;
}

/* For sticky event labels */
@supports (overflow: clip) {
  .mbsc-timeline.mbsc-ltr .mbsc-schedule-event-inner {
    left: 200px;
  }

  .mbsc-timeline.mbsc-rtl .mbsc-schedule-event-inner {
    right: 200px;
  }
}

Templating​

The display of timeline resources can be customized with named slots. The resource and resourceHeader slot can be used to customize the resources.

Besides the resources, an additional sidebar can be rendered on the opposite end of the row through the sidebar slot, and a header for it, using the sidebarHeader slot.

A footer can be rendered as well for each day using the dayFooter slot. When a footer is used the resourceFooter and sidebarFooter can be defined as well.

Timeline resource, sidebar and footer templating

API​

Options​

clickToCreate​

boolean | "double" | "single"

Enable new event creation on click. If true or 'double', a new event will be created only with a double click and with the 'single' value the event will be created instantly with a single click.

This option will only work on desktop environment where mouse events are fired. It will also allow deleting of the focused events using the Delete or Backspace key.

In touch environment a long tap should be used to create a new event and it is controlled by the dragToCreate option.

Using the extendDefaultEvent option extra properties can be set for the created event.

The event deletion functionality can be overwritten using the eventDelete option.

Default value: undefined

colors​

Array<MbscCalendarColor>

Specifies the color for certain dates or date ranges on the calendar. The color object has the following properties:

  • allDay: boolean - Specifies whether the date you want to color is all day or not.
  • background: string - Background color of the cell, can be any valid CSS color ('red', '#ff0000', 'rgb(255, 0, 0)', etc.).
  • cellCssClass: string - CSS class for the day cell. Only applicable for the calendar view.
  • cssClass string - Specifies a custom CSS class for the color. Useful when customization is needed for the background of cells and time ranges. Only applicable for the timeline and scheduler views.
  • date: Date | string | object - Date of the calendar day which should be colored.
  • start: Date | string | object - Start of the colored range.
  • end: Date, string | object - End of the colored range.
  • highlight: string - Highlight color of the day, can be any valid CSS color ('red', '#ff0000', 'rgb(255, 0, 0)', etc.).
  • recurring: string | object - Recurrence rule for coloring recurring days.
  • recurringException: string | object | Array<string | object> - Exception dates of the recurring rule. Useful when specific dates need to be skipped from the rule.
  • recurringExceptionRule: string | object - Exception rule of the recurring rule. Useful when recurring dates need to be skipped from the rule.
  • resource: string | number | Array<string | number> - Specifies the resource ids for the color. The color will be displayed only in the specified resource. If there is no resource defined, the color will be displayed in every resource.
  • slot: string | number - Specifies the slot id for the color. The color will be displayed only in the specified slot. If there is no slot defined, the color will be displayed in every slot.
  • textColor: string - Specifies the text color of the colored range title.
  • title: string - Text which will be displayed for the colored range. Only applicable for the timeline and scheduler views.
info

The colored range will be considered all-day if:

  • the allDay property is explicitly set.
  • the start / end properties are not specified, only the date.
info

The dates can be specified as JavaScript Date objects, ISO 8601 strings, or moment objects.

info

The colors can be combined with the labels or marked options.

colors: [
  { date: new Date(2020, 2, 23), background: 'pink' },
  { date: new Date(2020, 2, 24), background: 'green' },
  { background: '#ff0000', recurring: { repeat: 'weekly', weekDays: 'SU' } },
  { background: 'yellow', recurring: { repeat: 'weekly', weekDays: 'SA' } }
]

Default value: undefined

connections​

Array<MbscEventConnection>

Specifies connections between events. On the UI events will be linked with lines and additionally arrows can be displayed to illustrate the direction of the connection. Events can have multiple connections simultaneously.

An array of connection objects can be passed. The connection object has the following properties:

  • arrow: boolean | 'from' | 'to' | 'bidirectional' - Specify where to display arrows. If true, the arrow will display only at the end side of the connection.
  • color: string - The color of the connection.
  • cssClass: string - Custom CSS class for the connection line for further customization.
  • from: string - The id of the event where the connection will begin.
  • to: string - The id of the event where the connection will end.

Default value: undefined

cssClass​

string

Specifies a custom CSS class for the component.

Default value: undefined

data​

Array<MbscCalendarEvent>

The events for the calendar, as an array of event objects. The event object supports the following properties:

  • allDay: boolean - Specifies if the event is all day or not.
  • color: string - The color of the event.
  • cssClass string - Custom CSS class for the event. Useful when customization is needed on the event level. For example: setting the width for specific events.
  • dragBetweenResources: boolean - Specifies whether the event is movable across resources. It applies for scheduler and timeline views. Has precedence over the eventDragBetweenResources property of the resource and the dragBetweenResources option.
  • dragInTime: boolean - Specifies whether the event is movable in time. Has precedence over the eventDragInTime property of the resource and the dragInTime option.
  • editable: boolean - Specifies if an event is editable or not. Setting it to false disables drag & drop, resize and delete,
  • end: Date | string | object - The end of the event.
  • id: string | number, Number - A unique id for the event. If not specified, the event will get a generated id. and the event will have the mbsc-readonly-event CSS class. With this class, the fixed events will be easily customizable, for example: add opacity or disable the cursor on the fixed events.
  • recurring: string | object - Recurrence rule for the event.
  • recurringException: string | object | Array<string | object> - Exception dates of the recurring rule. Useful when specific dates need to be skipped from the rule.
  • recurringExceptionRule: string | object - Exception rule of the recurring rule. Useful when recurring dates need to be skipped from the rule.
  • resize: boolean - Specifies whether the event is resizable. Has precedence over the eventResize property of the resource and the dragToResize option.
  • resource: string | number | Array<string | number> - Specifies the resource ids for the event. The event will be displayed only in the specified resources. If there is no resource defined, the event will be displayed in every resource.
  • slot: string | number - Specifies the slot id for the event.
  • start: Date | string | object - The start of the event. The event will be displayed only in the specified slot. If there is no slot defined, the event will be displayed in every slot.
  • title: string - The title of the event.
  • tooltip: string - The tooltip text of the event.
info

The dates can be specified as JavaScript Date objects, ISO 8601 strings, or moment objects.

info

The event objects may have additional custom properties as well. The custom properties are not used by the event calendar, but they are kept and will be available anywhere the event objects are used. E.g. the onEventClick event will receive the event object as argument, containing the custom properties as well.

info

Use the getEvents method to get the events between two dates.

data: [
  {
    start: new Date(2021, 5, 23),
    end: new Date(2021, 5, 30),
    title: 'Conference',
    allDay: true,
    color: 'red'
  },
  {
    title: 'Work project',
    recurring: {
      repeat: 'daily',
      until: '2021-04-01'
    },
    recurringException: ['2021-03-15', '2021-03-25'],
    recurringExceptionRule: {
      repeat: 'weekly',
      weekDays: 'SA,SU'
    }
  }
]

Default value: undefined

dataTimezone​

string

The timezone in which the data is interpreted. If the data contains timezone information (when the ISO string has a timezone offset, e.g. "2021-03-28T01:00:00Z" or "2021-03-28T03:00:00+03:00") then the data's timezone is used instead.

info

When using timezones, the exclusiveEndDates option is also turned on by default.

info

When using anything other than the default ('local'), a timezone plugin must be also passed to the component.

Possible values:

  • 'local' - The system's local timezone.
  • 'utc' - UTC (Universal Coordinated Time) timezone.
  • Timezone name - The timezone name from the IANA time zone database, e.g. "America/New_York".

If not specified, it defaults to the displayTimezone.

Default value: undefined

defaultSelectedDate​

DateType

Specifies the initial selected date on the calendar.

Default value: undefined

displayTimezone​

string

The timezone in which the data is displayed.

info

When using timezones, the exclusiveEndDates option is also turned on by default.

info

When using anything other than the default ('local'), a timezone plugin must be also passed to the component.

Possible values:

  • 'local' - The system's local timezone.
  • 'utc' - UTC (Universal Coordinated Time) timezone.
  • Timezone name - The timezone name from the IANA time zone database, e.g. "America/New_York".

Default value: 'local'

dragBetweenResources​

boolean

If false, the events will not be moveable across resources, only in time. To control movement in time, use the dragInTime option.

Consider that dragToMove has to be enabled.

Default value: true

dragInTime​

boolean

If false, the events will not be moveable in time. In case of the scheduler and timeline views events events can still be moved between resources. To control movement between resources, use the dragBetweenResources option.

Consider that dragToMove has to be enabled.

Default value: true

dragTimeStep​

number

Specifies the steps in minutes for the scheduler and timeline events during drag.

Default value: 15

dragToCreate​

boolean

If true, dragging on an empty cell will create a new event. It will also allow deleting of the focused events using the Delete or Backspace key.

The title of the new event can be specified with the newEventText option.

Using the extendDefaultEvent option extra properties can be set for the created event.

The event deletion functionality can be overwritten using the eventDelete option.

Default value: undefined

dragToMove​

boolean

If true, the events will be moveable.

Default value: undefined

dragToResize​

boolean

If true, the events will be resizable.

Default value: undefined

eventDelete​

boolean

Enables or disables event deletion. When true, the focused event will be deleted on pressing the Delete or Backspace keys on the keyboard.

By default the event deletion depends on the clickToCreate and dragToCreate options. If either of those are true, and no eventDelete option is set, then event deletion is also enabled, otherwise not.

Default value: undefined

exclusiveEndDates​

boolean

If true, the event calendar will work in exclusive end dates mode, meaning that the last moment of the range (event, invalid, colors, etc.) is not part of the range.

E.g. end: '2021-07-03T00:00' means that the event ends on 2nd of July and will not be displayed on 3rd of July.

info

When using timezones, the exclusiveEndDates option will default to true.

extendDefaultEvent​

(args: MbscNewEventData) => MbscCalendarEvent

externalDrag​

boolean

If true, external drag & drop is allowed and events can be dragged outside of the component view.

Default value: undefined

externalDrop​

boolean

If true, external events can be dragged into the view.

Default value: undefined

height​

string | number

Sets the height of the component.

The height of the calendar view impacts the number of labels that fit into a table cell. A "show more" label will be displayed for events that don't fit.

Default value: undefined

invalid​

Array<DateType> | Array<IValidateProps>

An array containing the invalid values. Can contain dates, or objects with the following properties:

  • allDay: boolean - Specifies whether the invalid range is all day or not.
  • start: Date | string | object - Start of the invalid range.
  • end: Date, string | object - End of the invalid range.
  • recurring: string | object - Recurrence rule for recurring invalid ranges.
  • recurringException: string | object | Array<string | object> - Exception dates of the recurring rule. Useful when specific dates need to be skipped from the rule.
  • recurringExceptionRule: string | object - Exception rule of the recurring rule. Useful when recurring dates need to be skipped from the rule.
  • resource: string | number | Array<string | number> - Specifies the resource ids for the invalid range. The invalid range will be displayed only in the specified resource. If there is no resource defined, the invalid range will be displayed in every resource.
  • slot: string | number - Specifies the slot id for the invalid range. The invalid range will be displayed only in the specified slot. If there is no slot defined, the invalid range will be displayed in every slot.
  • title: string - Text which will be displayed for the invalid range. Only applicable for the timeline and scheduler views.
info

The dates can be specified as JavaScript Date objects, ISO 8601 strings, or moment objects.

invalid: [
  // Passing exact dates and times
  new Date(2021, 1, 7), // Date object
  '2021-10-15T12:00', // ISO 8601 string
  moment('2020-12-25'), // moment object

  // Passing invalid ranges
  {
    // ISO 8601 strings
    start: '2021-10-15T12:00',
    end: '2021-10-18T13:00',
    title: 'Company 10th anniversary',
  },
  {
    // Date objects
    allDay: true,
    start: new Date(2021, 2, 7),
    end: new Date(2021, 2, 9),
    title: 'Conference for the whole team',
  },
  {
    // Time range with recurrence
    start: '13:00',
    end: '12:00',
    recurring: { repeat: 'weekly', weekDays: 'MO,TU,WE,TH,FR' },
    title: 'Lunch break',
  },
  {
    // Disable weekends
    recurring: {
      repeat: 'weekly',
      weekDays: 'SA,SU'
    }
  }
];

Default value: undefined

invalidateEvent​

"start-end" | "strict"

Specifies how to validate events against invalid ranges on create/move/resize:

  • 'strict' - The event cannot intersect with an invalid range at all.
  • `'start-end' - The event start and end cannot be inside an invalid range.

Default value: 'strict'

max​

DateType

Maximum date and time. The calendar cannot be navigated beyond the specified maximum date. If navigation is needed, but event creation should not be allowed after a specific date, use the invalid option with daily recurrence starting from the specific date.

Default value: undefined

min​

DateType

Minimum date and time. The calendar cannot be navigated beyond the specified minimum date. If navigation is needed, but event creation should not be allowed before a specific date, use the invalid option with daily recurrence until the specific date.

Default value: undefined

refDate​

DateType

Specifies the reference date of the component, which represents when to start to calculate the view you want to display. For example, if you want to display 14 days from today, you can specify today as the reference date.

info

If not defined, in case of scheduler and timeline views it will default to today, in other views it will default to '1970/01/01'.

Default value: undefined

resources​

null | Array<MbscResource>

The scheduler and timeline views can handle multiple resources. Resource grouping can be modified with the help of the groupBy option.

If set to null or undefined, all events will be displayed, regardless of their resource property. If set to an empty array, only those events will be displayed which are not tied to any resource.

The timeline view can render multiple levels of hierarchy groups. Levels can be added with the help of the children property.

The resource object supports the following properties:

  • children: Array<MbscResource> - Children resources.
  • collapsed: boolean - The displayed state of the children resources.
  • id: Number, string - The id of the resource.
  • name: string - The name of the resource.
  • color: string - The color sets the default color for the events of the resource. If an event has an explicit color set, the resource color will be overridden. If the color is not set, the events of the resource will inherit the default calendar color.
  • eventCreation: boolean - Disable event creation on specific resources by setting it to false. It's true by default.
  • eventDragBetweenResources: boolean - Specifies whether the events in the specified resource are movable across resources. It applies for scheduler and timeline views. Has precedence over the dragBetweenResources option.
  • eventDragInTime: boolean - Specifies whether the events in the specified resource are movable in time. Has precedence over the dragInTime option.
  • eventResize: boolean - Specifies whether the events in the specified resource are resizable. Has precedence over the dragToResize option.
resources: [
  {
    id: 1,
    name: 'Flatiron Room',
    color: '#f7c4b4'
  },
  {
    id: 2,
    name: 'The Capital City',
    color: '#c6f1c9'
  },
  {
    id: 3,
    name: 'Heroes Square',
    color: '#e8d0ef'
  }
]

Default value: undefined

responsive​

missing

Specifies different options for different container widths, in a form of an object, where the keys are the name of the breakpoints, and the values are objects containing the options for the given breakpoint.

info

The available width is queried from the container element of the component and not the browsers viewport like in css media queries

There are five predefined breakpoints:

  • xsmall - min-width: 0px
  • small - min-width: 576px
  • medium - min-width: 768px
  • large - min-width: 992px
  • xlarge - min-width: 1200px

Custom breakpoints can be defined by passing an object containing the breakpoint property specifying the min-width in pixels. Example:

responsive: {
  small: {
    display: 'bottom'
  },
  custom: { // Custom breakpoint, you can use multiple if needed, but each must have a unique name.
    breakpoint: 600,
    display: 'center'
  },
  large: {
    display: 'anchored'
  }
}

Default value: undefined

selectMultipleEvents​

boolean

When true, enables multiple event selection on the calendar.

Default value: false

selectedDate​

DateType

Specifies the selected date on the calendar. Setting this option will force the calendar to display the passed date and won't display anything else unless another selected date is set. This is called a controlled usage, and the onSelectedDateChange event can be used to get notified and act on navigational changes.

To set the initially displayed date without a controlled usage, use the defaultSelectedDate option instead.

Default value: undefined

selectedEvents​

Array<MbscCalendarEvent>

Specifies the selected events on the calendar. The onSelectedEventsChange event will be fired when the selected events change from the calendar.

Default value: undefined

separator​

string

Separator between date and time in the formatted date string.

Default value: ' '

showControls​

boolean

Show or hide the calendar header controls: the previous and next buttons, and the current view button together with the year and month picker.

Default value: true

showEventTooltip​

boolean

If false, it will hide the native tooltip that shows up when hovering over an event.

Default value: true

slots​

null | Array<MbscSlot>

The slots besides the resources introduce a horizontal level of data grouping to the timeline view.

If set to null or undefined, all events will be displayed, regardless of their slot property. If set to an empty array, only those events will be displayed which are not tied to any slot.

The slot object supports the following properties:

  • id: string | number - The id of the slot.
  • name: string - The name of the slot.
slots: [
  {
    id: 1,
    name: 'Morning shift',
  },
  {
    id: 2,
    name: 'Afternoon shift',
  }
]

Default value: undefined

theme​

string

Specifies the visual appearance of the component.

If it is 'auto' or undefined, the theme will automatically be chosen based on the platform. If custom themes are also present, they will take precedence over the built in themes, e.g. if there's an iOS based custom theme, it will be chosen on the iOS platform instead of the default iOS theme.

Supplied themes:

  • 'ios' - iOS theme
  • 'material' - Material theme
  • 'windows' - Windows theme

It's possible to modify theme colors or create custom themes.

info

Make sure that the theme you set is included in the downloaded package.

Default value: undefined

themeVariant​

"dark" | "light" | "auto"

Controls which variant of the theme will be used (light or dark).

Possible values:

  • 'light' - Use the light variant of the theme.
  • 'dark' - Use the dark variant of the theme.
  • 'auto' or undefined - Detect the preferred system theme on devices where this is supported.

To use the option with custom themes, make sure to create two custom themes, where the dark version has the same name as the light one, suffixed with '-dark', e.g.: 'my-theme' and 'my-theme-dark'.

Default value: undefined

timezonePlugin​

ITimezonePlugin

Specifies the timezone plugin, which can handle the timezone conversions.

By default the component uses the local timezone of the browser to interpret dates. If you want to interpret dates a different timezone, you will need an external library to handle the timezone conversions. There are two supported libraries: moment-timezone and luxon.

You can specify either the dataTimezone or the displayTimezone or both.

Depending on which external library you use you can pass either the momentTimezone or luxonTimezone objects. These objects can be imported from the mobiscroll bundle.

Default value: undefined

width​

string | number

Sets the width of the component.

Default value: undefined

Events​

@cell-click​

(args: MbscCellClickEvent, inst: EventcalendarBase) => void

Triggered when a cell is clicked on the calendar day, scheduler cell, or timeline cell.

Parameters:

  • args - The event object has the following properties:

    • date: Date - The date of the clicked cell.
    • domEvent: Event - The DOM event of the click.
    • events: Array<MbscCalendarEvent> - The events for the clicked date.
    • resource: string | number - The id of the resource where the cell was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the cell was clicked.
    • target: HTMLElement - The DOM element of the clicked cell.

  • inst - The component instance.

@cell-double-click​

(args: MbscCellClickEvent, inst: EventcalendarBase) => void

Triggered when a cell is double-clicked on the calendar day, scheduler cell, or timeline cell.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date of the clicked cell.
    • domEvent: Event - The DOM event of the click.
    • events: Array<MbscCalendarEvent> - The events for the clicked date.
    • resource: string | number - The id of the resource where the cell was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the cell was clicked.
    • target: HTMLElement - The DOM element of the clicked cell.

  • inst - The component instance.

@cell-right-click​

(args: MbscCellClickEvent, inst: EventcalendarBase) => void

Triggered when a cell is right-clicked on the calendar, scheduler, or timeline grid .

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date of the clicked cell.
    • domEvent: Event - The DOM event of the click.
    • events: Array<MbscCalendarEvent> - The events for the clicked date.
    • resource: string | number - The id of the resource where the cell was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the cell was clicked.
    • target: HTMLElement - The DOM element of the clicked cell.

  • inst - The component instance.

@destroy​

(args: any, inst: any) => void

Triggered when the component is destroyed.

Parameters:

  • args - The event argument object.

  • inst - The component instance.

@event-click​

(args: MbscEventClickEvent, inst: EventcalendarBase) => void

Triggered when an event is clicked.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date on which the event was clicked.
    • domEvent: Event - The DOM event of the click.
    • event: MbscCalendarEvent - The clicked calendar event.
    • resource: string | number - The id of the resource where the event was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • slot: string | number - The id of the slot where the event was clicker, if slots are set.
    • source: 'agenda' | 'calendar' | 'schedule' | 'timeline' | 'popover' - The view where the event was clicked.

  • inst - The component instance.

@event-create​

(args: MbscEventCreateEvent, inst: EventcalendarBase) => void

Triggered when an event is about to create and it is not yet rendered on its final position. Event creation can be prevented by returning false from the handler function.

Parameters:

  • args - The event argument with the following properties:

    • action: 'click' | 'drag' | 'externalDrop' - The action which created the event.
    • domEvent: Event - The DOM event from the end of the gesture (mouseup or touchend).
    • event: MbscCalendarEvent - The newly created event.
    • originEvent: MbscCalendarEvent - The occurrence of the event which was dragged. Will be set only if the event was created by dragging a recurring event occurrence.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event is being created.

  • inst - The component instance.

@event-create-failed​

(args: MbscEventCreateFailedEvent, inst: EventcalendarBase) => void

Triggered when an event creation failed due to overlapping an invalid range.

Parameters:

  • args - The event argument with the following properties:

    • action: 'click' | 'drag' | 'externalDrop' - The action which created the event.
    • event: MbscCalendarEvent - The newly created event.
    • invalid: object - The invalid object which the event overlapped.
    • originEvent: MbscCalendarEvent - The occurrence of the event which was dragged. Will be set only if the event was created by dragging a recurring event occurrence.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event was created.

  • inst - The component instance.

@event-created​

(args: MbscEventCreatedEvent, inst: EventcalendarBase) => void

Triggered when an event is created and it is rendered in its position.

Parameters:

  • args - The event argument with the following properties:

    • action: 'click' | 'drag' | 'externalDrop' - The action which created the event.
    • event: MbscCalendarEvent - The newly created event.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event was created.
    • target: HTMLElement - The DOM element of the created event.

  • inst - The component instance.

@event-delete​

(args: MbscEventDeleteEvent, inst: EventcalendarBase) => void

Triggered when an event is about to be deleted and it is not yet removed from the view. Event deletion can be performed with delete and backspace button on an active event. Deletion can be prevented by returning false from the handler function.

Parameters:

  • args - The event argument with the following properties:

    • domEvent: Event - The DOM event from of the keydown action.
    • event: MbscCalendarEvent - The event being deleted.
    • events: Array<MbscCalendarEvent> - The events being deleted in case of multiple event selection.
    • source: 'agenda' | 'calendar' | 'timeline' | 'schedule' - The view where the event is being deleted.

  • inst - The component instance.

@event-deleted​

(args: MbscEventDeletedEvent, inst: EventcalendarBase) => void

Triggered when an event is deleted and it is removed from the view.

Parameters:

  • args - The event argument with the following properties:

    • event: MbscCalendarEvent - The deleted event.
    • events: Array<MbscCalendarEvent> - The deleted events in case of multiple event selection.
    • source: 'agenda' | 'calendar' | 'timeline' | 'schedule' - The view where the event was deleted.

  • inst - The component instance.

@event-double-click​

(args: MbscEventClickEvent, inst: EventcalendarBase) => void

Triggered when an event is double-clicked.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date on which the event was clicked.
    • domEvent: Event - The DOM event of the click.
    • event: MbscCalendarEvent - The clicked calendar event.
    • resource: string | number - The id of the resource where the event was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • slot: string | number - The id of the slot where the event was clicker, if slots are set.
    • source: 'agenda' | 'calendar' | 'schedule' | 'timeline' | 'popover' - The view where the event was clicked.

  • inst - The component instance.

@event-drag-end​

(args: MbscEventDragEvent, inst: EventcalendarBase) => void

Triggered when an event drag has ended.

Parameters:

  • args - The event argument with the following properties:

    • domEvent: Event - The DOM event of the drag.
    • event: MbscCalendarEvent - The dragged calendar event.
    • resource: string | number - The id of the resource where the event was dragged, if resources are set.
    • slot: string | number - The id of the slot where the event was dragged, if slots are set.
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the event was dragged.

  • inst - The component instance.

@event-drag-enter​

(args: MbscEventDragEvent) => void

Triggered when an event is dragged into the calendar/timeline/schedule view.

Parameters:

  • args - The event argument with the following properties:
    • domEvent: Event - The DOM event of the drag.
    • event: MbscCalendarEvent - The dragged calendar event.
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the event is dragged.

@event-drag-leave​

(args: MbscEventDragEvent) => void

Triggered when an event is dragged out form the calendar/timeline/schedule view.

Parameters:

  • args - The event argument with the following properties:
    • domEvent: Event - The DOM event of the drag.
    • event: MbscCalendarEvent - The dragged calendar event.
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the event is dragged.

@event-drag-start​

(args: MbscEventDragEvent, inst: EventcalendarBase) => void

Triggered when an event drag has started.

Parameters:

  • args - The event argument with the following properties:

    • action: 'create' | 'resize' | 'move' - The user action which triggered the event.
    • domEvent: Event - The DOM event of the drag.
    • event: MbscCalendarEvent - The dragged calendar event.
    • resource: string | number - The id of the resource where the event is dragged, if resources are set.
    • slot: string | number - The id of the slot where the event is dragged, if slots are set.
    • source: 'calendar' | 'schedule' | 'timeline' - The view where the event is dragged.

  • inst - The component instance.

@event-hover-in​

(args: MbscEventClickEvent, inst: EventcalendarBase) => void

Triggered when the mouse pointer hovers an event on the calendar.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date on which the event is hovered.
    • domEvent: Event - The DOM event of the hover.
    • event: MbscCalendarEvent - The hovered calendar event.
    • resource: string | number - The id of the resource where the event is hovered, if resources are set.
    • slot: string | number - The id of the slot where the event is hovered, if slots are set.
    • source: 'agenda' | 'calendar' | 'schedule' | 'timeline' | 'popover' - The view where the event is hovered.

  • inst - The component instance.

@event-hover-out​

(args: MbscEventClickEvent, inst: EventcalendarBase) => void

Triggered when the mouse pointer leaves an event on the calendar.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date on which the event was hovered.
    • domEvent: Event - The DOM event of the hover.
    • event: MbscCalendarEvent - The hovered calendar event.
    • resource: string | number - The id of the resource where the event was hovered, if resources are set.
    • slot: string | number - The id of the slot where the event was hovered, if slots are set.
    • source: 'agenda' | 'calendar' | 'schedule' | 'timeline' | 'popover' - The view where the event was hovered.

  • inst - The component instance.

@event-right-click​

(args: MbscEventClickEvent, inst: EventcalendarBase) => void

Triggered when an event is right-clicked.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The date on which the event was clicked.
    • domEvent: Event - The DOM event of the click.
    • event: MbscCalendarEvent - The clicked calendar event.
    • resource: string | number - The id of the resource where the event was clicked, if resources are set.
    • selected: boolean - Specifies if the day is currently selected or not (before it was clicked).
    • slot: string | number - The id of the slot where the event was clicker, if slots are set.
    • source: 'agenda' | 'calendar' | 'schedule' | 'timeline' | 'popover' - The view where the event was clicked.

  • inst - The component instance.

@event-update​

(args: MbscEventUpdateEvent, inst: EventcalendarBase) => void

Triggered when an event is about to update. Update can be prevented by returning false from the handler function.

Parameters:

  • args - The event argument with the following properties:

    • domEvent: Event - The DOM event from the end of the gesture (mouseup or touchend).
    • event: MbscCalendarEvent - The updated event.
    • events: Array<MbscCalendarEvent> - The updated events. It is set on recurring event delete, when multiple event selection is enabled.
    • newEvent: MbscCalendarEvent - The newly created event. Will be set only if the dragged event was a recurring event occurrence.
    • oldEvent: MbscCalendarEvent - The original event before the update.
    • oldEvents: Array<MbscCalendarEvent> - The original events before the update. It is set on recurring event delete, when multiple event selection is enabled.
    • oldEventOccurrence: MbscCalendarEvent - The occurrence of the event which was dragged. Will be set only if the dragged event was a recurring event occurrence.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event is being updated.

  • inst - The component instance.

@event-update-failed​

(args: MbscEventUpdateFailedEvent, inst: EventcalendarBase) => void

Triggered when an event update failed due to overlapping an invalid range.

Parameters:

  • args - The event argument with the following properties:

    • event: MbscCalendarEvent - The updated event.
    • invalid: object - The invalid object which the event overlapped.
    • newEvent: MbscCalendarEvent - The newly created event. Will be set only if the dragged event was a recurring event occurrence.
    • oldEvent: MbscCalendarEvent - The original event before the update.
    • oldEventOccurrence: MbscCalendarEvent - The occurrence of the event which was dragged. Will be set only if the dragged event was a recurring event occurrence.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event was updated.

  • inst - The component instance.

@event-updated​

(args: MbscEventUpdatedEvent, inst: EventcalendarBase) => void

Triggered when an event is updated and is rendered in its new position. This is where you update the event in your database or persistent storage.

Parameters:

  • args - The event argument with the following properties:

    • event: MbscCalendarEvent - The updated event.
    • events: Array<MbscCalendarEvent> - The updated events. It is set on recurring event delete, when multiple event selection is enabled.
    • oldEvent: MbscCalendarEvent - The original event before the update.
    • oldEvents: Array<MbscCalendarEvent> - The original events before the update. It is set on recurring event delete, when multiple event selection is enabled.
    • source: 'calendar' | 'timeline' | 'schedule' - The view where the event was updated.
    • target: HTMLElement - The DOM element of the updated event.

  • inst - The component instance.

@init​

(args: any, inst: any) => void

Triggered when the component is initialized.

Parameters:

  • args - The event argument object.

  • inst - The component instance.

@page-change​

(args: MbscPageChangeEvent, inst: EventcalendarBase) => void

Triggered when the calendar page is changed (with buttons or swipe).

Parameters:

  • args - The event argument with the following properties:

    • firstDay: Date - The first day of the displayed page.
    • lastDay: Date - The last day of the displayed page.
    • month: Date - The first day of the visible month in case of month view.

  • inst - The component instance.

@page-loaded​

(args: MbscPageLoadedEvent, inst: EventcalendarBase) => void

Triggered when the calendar page is changed (with buttons or swipe) and the view finished rendering.

Parameters:

  • args - The event argument with the following properties:

    • firstDay: Date - The first day of the displayed page.
    • lastDay: Date - The last day of the displayed page.
    • month: Date - The first day of the visible month in case of month view.

  • inst - The component instance.

@page-loading​

(args: MbscPageLoadingEvent, inst: EventcalendarBase) => void

Triggered before the markup of a calendar page is starting to render.

Parameters:

  • args - The event argument with the following properties:

    • firstDay: Date - The first day of the displayed page.
    • lastDay: Date - The last day of the displayed page.
    • month: Date - The first day of the visible month in case of month view.

  • inst - The component instance.

@resource-collapse​

(args: MbscResourceCollapseEvent, inst: EventcalendarBase) => void

Triggered when a parent resource is collapsed on the timeline.

Parameters:

  • args - The event argument with the following properties:

    • domEvent: Event - The DOM event of the click.
    • resource: string | number - The id of the collapsed resource.

  • inst - The component instance.

@resource-expand​

(args: MbscResourceExpandEvent, inst: EventcalendarBase) => void

Triggered when a parent resource is expanded on the timeline.

Parameters:

  • args - The event argument with the following properties:

    • domEvent: Event - The DOM event of the click.
    • resource: string | number - The id of the expanded resource.

  • inst - The component instance.

@selected-date-change​

(args: MbscSelectedDateChangeEvent, inst: EventcalendarBase) => void

Triggered when the selected date is changed from the UI. You can use this event in conjunction with the selectedDate option to customize where the event calendar should navigate.

Parameters:

  • args - The event argument with the following properties:

    • date: Date - The newly selected date.

  • inst - The component instance.

@selected-events-change​

(args: MbscSelectedEventsChangeEvent, inst: EventcalendarBase) => void

Triggered when an event is selected or deselected on the UI, when multiple event selection is enabled.

You can also select events programmatically using the selectedEvents option.

Parameters:

  • args - The event argument with the following properties:

    • events: Array<MbscCalendarEvent> - The selected events.

  • inst - The component instance.

Localization​

allDayText​

string

Text for all day events.

Default value: 'All-day'

amText​

string

Text for AM.

Default value: 'am'

calendarSystem​

MbscCalendarSystem

Specifies the calendar system to be used. Supported calendars:

  • Gregorian - Gregorian calendar. This is the default calendar system.
  • Jalali - Persian calendar. The Farsi language needs to be included to the package.
  • Hijri - Hijri calendar. The Arabic language needs to be included to the package

Default value: undefined

dateFormat​

string

The format for parsed and displayed dates:

  • M - month of year (no leading zero)
  • MM - month of year (two digit)
  • MMM - month name short
  • MMMM - month name long
  • D - day of month (no leading zero)
  • DD - day of month (two digit)
  • DDD - day of week (short)
  • DDDD - day of week (long)
  • YY - year (two digit)
  • YYYY - year (four digit)
  • '...' - literal text
  • '' - single quote
  • anything else - literal text

Default value: 'MM/DD/YYYY'

dateFormatLong​

string

Long date format, used by the agenda view and timeline day headers. Characters have the same meaning as in the dateFormat option.

Default value: 'D DDD MMM YYYY'

dayNames​

Array<string>

The list of long day names, starting from Sunday.

Default value: ['Sunday', 'Monday', 'Tuesday', 'Wednesday', 'Thursday', 'Friday', 'Saturday']

dayNamesMin​

Array<string>

The list of minimal day names, starting from Sunday.

Default value: ['S', 'M', 'T', 'W', 'T', 'F', 'S']

dayNamesShort​

Array<string>

The list of abbreviated day names, starting from Sunday.

Default value: ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']

firstDay​

number

Set the first day of the week: Sunday is 0, Monday is 1, etc.

Default value: 0

locale​

string | MbscLocale

Sets the language of the component. The locale object contains all the translations for a given language. The built in language modules are listed below. If a language is not listed, it can be provided as a custom language module.

Supported values:

  • Arabic: localeAr, 'ar'
  • Bulgarian: localeBg, 'bg'
  • Catalan: localeCa, 'ca'
  • Czech: localeCs, 'cs'
  • Chinese: localeZh, 'zh'
  • Croatian: localeHr, 'hr'
  • Danish: localeDa, 'da'
  • Dutch: localeNl, 'nl'
  • English: localeEn or undefined, 'en'
  • English (UK): localeEnGB, 'en-GB'
  • Farsi: localeFa, 'fa'
  • German: localeDe, 'de'
  • Greek: localeEl, 'el'
  • Spanish: localeEs, 'es'
  • Finnish: localeFi, 'fi'
  • French: localeFr, 'fr'
  • Hebrew: localeHe, 'he'
  • Hindi: localeHi, 'hi'
  • Hungarian: localeHu, 'hu'
  • Italian: localeIt, 'it'
  • Japanese: localeJa, 'ja'
  • Korean: localeKo, 'ko'
  • Lithuanian: localeLt, 'lt'
  • Norwegian: localeNo, 'no'
  • Polish: localePl, 'pl'
  • Portuguese (Brazilian): localePtBR, 'pt-BR'
  • Portuguese (European): localePtPT, 'pt-PT'
  • Romanian: localeRo, 'ro'
  • Russian: localeRu, 'ru'
  • Russian (UA): localeRuUA, 'ru-UA'
  • Slovak: localeSk, 'sk'
  • Serbian: localeSr, 'sr'
  • Swedish: localeSv, 'sv'
  • Thai: localeTh, 'th'
  • Turkish: localeTr, 'tr'
  • Ukrainian: localeUa, 'ua'

Default value: undefined

monthNames​

Array<string>

The list of full month names.

Default value: ['January', 'February', 'March', 'April', 'May', 'June', 'July', 'August', 'September', 'October', 'November', 'December']

monthNamesShort​

Array<string>

The list of abbreviated month names.

Default value: ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']

newEventText​

string

Title for the newly created event with the dragToCreate and the clickToCreate action.

Default value: 'New event'

nextPageText​

string

Text for the next button in the calendar header, used as accessibility label.

Default value: 'Next page'

pmText​

string

Text for PM.

Default value: 'pm'

prevPageText​

string

Text for the previous button in the calendar header, used as accessibility label.

Default value: 'Previous page'

rtl​

boolean

Enables right-to-left display.

Default value: false

timeFormat​

string

The format for parsed and displayed times:

  • h - 12 hour format (no leading zero)
  • hh - 12 hour format (leading zero)
  • H - 24 hour format (no leading zero)
  • HH - 24 hour format (leading zero)
  • m - minutes (no leading zero)
  • mm - minutes (leading zero)
  • s - seconds (no leading zero)
  • ss - seconds (leading zero)
  • a - lowercase am/pm
  • A - uppercase AM/PM
  • '...' - literal text
  • '' - single quote
  • anything else - literal text

Default value: 'hh:mm A'

todayText​

string

Text for the "Today" button.

Default value: 'Today'

weekText​

string

Text for week numbers in the timeline header. The {count} inside the string will be replaced with the number of the current week.

Default value: 'Week {count}'

Slots​

day​

<template #day="args">...</template>

Customize the day cells of the calendar view and the header date container in case of schedule and timeline view. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

If you are looking to customize only the day cells content and don't want to bother with the styling of the event, in case of calendar and schedule view you can use the dayContent option.

The following day specific details are available:

  • date: Date - The specific date as a Date object.
  • selected: boolean - True if the date is selected. (In case of calendar view)
  • events: Array<MbscCalendarEvent> - The list of events of the day.
  • resource: string | number - The id of the resource in case of scheduler(week and month views) when the events are grouped by resources.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.

dayContent​

<template #dayContent="args">...</template>

Customize the day cells content of the event calendar. The event calendar will take care of styling and you can focus on what you show beside the day number a.k.a the content.

If you are looking to fully customize the day (ex. add custom hover effects) you will need to use the day option. In that case you will only get the positioning done by the event calendar and everything else is up to you.

The following day specific details are available:

  • date: Date - The specific date as a Date object.
  • selected: boolean - True if the date is selected. (In case of calendar view)
  • events: Array<MbscCalendarEvent> - The list of events of the day.
  • resource: string | number - The id of the resource in case of scheduler(week and month views) when the events are grouped by resources.

dayFooter​

<template #dayFooter="args">...</template>

Customize the footer of each day for the timeline. This option is only available for the timeline.

The following day specific details are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the day.

header​

<template #header>...</template>

Customize the header of the event calendar. You can use custom html as well as the built in header components of the calendar.

hour​

<template #hour="args">...</template>

Customize the header hour container in case of the timeline view. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

The following hour specific properties are available:

  • date: Date object - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the hour.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.

hourFooter​

<template #hourFooter="args">...</template>

Customize the footer hour container in case of the timeline view. This options is only available for the timeline view.

The following hour specific properties are available:

  • date: Date object - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the hour.

month​

<template #month="args">...</template>

Customize the header month container in case of the timeline view. This options is only available for the timeline view.

The following month specific properties are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the month.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.

monthFooter​

<template #monthFooter="args">...</template>

Customize the footer month container in case of the timeline view. This options is only available for the timeline view.

The following month specific properties are available:

  • date: Date object - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the month.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.

resource​

<template #resource="resource">...</template>

Customize how the resources are rendered on the Scheduler/Timeline. The resource object is available to help in the customization.

resourceFooter​

<template #resourceFooter>...</template>

Customize the empty cell content below the resource column. This option is available only for the timeline view, when the dayFooter option is also used.

resourceHeader​

<template #resourceHeader>...</template>

Customize the empty cell content above the resource column. This options is only available for the timeline view.

scheduleEvent​

<template #scheduleEvent="event">...</template>

Customize the events that appear on the scheduler and timeline. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

If you are looking to customize only the content (ex. add custom elements) and don't want to bother with the styling of the event, you can use the scheduleEventContent option.

Some of the event specific details are computed, but there is also a reference to the original event they come from. The following event specific properties are available:

  • allDay: string - The localized all-day text in case of all day events.
  • end: string - The formatted end time, if the event is not all day.
  • id: string - The id of the event.
  • isMultiDay: boolean - True if the event spans across multiple days.
  • lastDay: boolean - True if it's rendered on the last day of a multiple event.
  • original: object - The original event object.
  • start: string - The formatted start time, if the event is not all day.
  • title: string - The title of the event.
  • currentResource: string | number - Represents the resource of the row or column where the event is being rendered.

scheduleEventContent​

<template #scheduleEventContent="event">...</template>

Customize the event content that appears on the scheduler and timeline. The event calendar will take care of styling and you can focus on what you show inside of the event a.k.a the content.

If you are looking to fully customize the event (ex. add custom hover effects) you will need to use the scheduleEvent option. In that case you will only get the positioning done by the event calendar and everything else is up to you.

Some of the event specific details are computed, but there is also a reference to the original event they come from. The following event specific properties are available:

  • allDay: string - The localized all-day text in case of all day events.
  • end: string - The formatted end time, if the event is not all day.
  • id: string - The id of the event.
  • isMultiDay: boolean - True if the event spans across multiple days.
  • lastDay: boolean - True if it's rendered on the last day of a multiple event.
  • original: object - The original event object.
  • start: string - The formatted start time, if the event is not all day.
  • title: string - The title of the event.
  • currentResource: string | number - Represents the resource of the row or column where the event is being rendered.

sidebar​

<template #sidebar="resource">...</template>

Add a custom sidebar on the right side of the timeline. This options is only available for the timeline view.

The resource object is available to help in resource specific customizations.

sidebarFooter​

<template #sidebarFooter>...</template>

Customize the empty cell content below the sidebar column. This options is available only for the timeline view, if the sidebar option is also used.

sidebarHeader​

<template #sidebarHeader>...</template>

Customize the empty cell content above the sidebar column. This options is available only for the timeline view, if the sidebar option is also used.

slot​

<template #slot="args">...</template>

Customize the slots template of the Timeline view.

The following details are available to help in the customization:

  • date: Date - The specific date where the slot is rendered.
  • slot: object - Data of the rendered slot.

week​

<template #week="args">...</template>

Customize the header week container in case of the timeline view. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

The following week specific properties are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the week.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.
  • endDate: Date - The end date of the week as a Date object
  • startDate: Date - The start date of the week as a Date object
  • weekNr: number - The week count. Enumeration starts with the first week of the year.

weekFooter​

<template #weekFooter="args">...</template>

Customize the footer week container in case of the timeline view. This options is only available for the timeline view.

The following week specific properties are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the week.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.
  • endDate: Date - The end date of the week as a Date object
  • startDate: Date - The start date of the week as a Date object
  • weekNr: number - The week count. Enumeration starts with the first week of the year.

year​

<template #year="args">...</template>

Customize the header year container in case of the timeline view. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

The following year specific properties are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the year.
  • isActive: boolean - On the timeline view, this parameter will be true when rendering the current day/week/month/year.

yearFooter​

<template #yearFooter="args">...</template>

Customize the footer year container in case of the timeline view. The event calendar will take care of the positioning, but everything else (like background color, hover effect, etc.) is left to you.

The following year specific properties are available:

  • date: Date - The specific date as a Date object.
  • events: Array<MbscCalendarEvent> - The list of events of the year.
